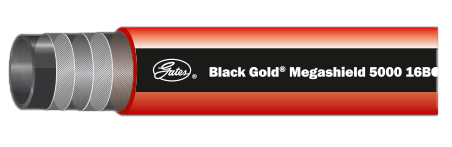

Megashield 5000 Blowout Preventer Hose

TVC Melting Chamber
Heliflex provides Gates Black Gold® MegaShield™ 5000 BOP hoses, engineered for safety, performance, and durability in demanding blowout preventer control systems. Rated for 5,000 psi across all sizes, these fire-resistant hoses withstand extreme pressures and temperatures while remaining flexible and easy to handle. With abrasion-resistant, anti-static covers, Gates BOP hoses ensure long service life and reliable performance in critical applications.

BOP 5000 MEGASHIELDTM PRODUCT SPECIFICATIONS

Tube : Black, Oil Resistant Nitrile.
Reinforcement : Multiple alternating layers of braided or spiraled, high-tensile steel wire.
Cover : Fiberglass loaded, red, oil and abrasion resistant Chloroprene.
Design Factor : 4:1
Temperature Range : -40°C to +100°C (-40°F to +212°F)
Couplings : Crimped couplings with over-ferrule fire protection.
DESCRIPTION PRODUCT NO. INNER DIAM. OUTER DIAM. WORKING PRES. BURST PRES. BEND RADIUS WEIGHT
(kg/m)		 LENGTH
(ft)
in mm in mm psi bar psi bar in mm
4BOP MEGASHIELD 5000 36700760 1/4 6.3 0.77 19.6 5000 350 20,000 1,400 4.0 100 0.55 440
6BOP MEGASHIELD 5000 36700761 3/8 9.5 0.93 23.5 5000 350 20,000 1,400 5.0 125 0.77 330
8BOP MEGASHIELD 5000 36700762 1/2 12.5 1.05 26.7 5000 350 20,000 1,400 7.0 180 0.94 220
12BOP MEGASHIELD 5000 36700763 3/4 19.0 1.38 35.1 5000 350 20,000 1,400 9.5 240 1.56 200
16BOP MEGASHIELD 5000 36700764 1 25.4 1.67 42.4 5000 350 20,000 1,400 12 300 2.63 200
20BOP MEGASHIELD 5000 36700765 1-1/4 31.5 2.11 53.6 5000 350 20,000 1,400 16.5 420 3.97 200
24BOP MEGASHIELD 5000 36700766 1-1/2 38.0 2.41 61.2 5000 350 20,000 1,400 20.0 500 5.36 200
32BOP MEGASHIELD 5000 36700767 2 51.0 2.96 75.2 5000 350 20,000 1,400 25.0 635 8.53 200
